Model 72 Synthesizer System

Synth by Softube

The Monophonic Legend, Perfected.

  • Based on a classic analogue monophonic synth from the early '70s, with the emphasis on sound quality.
  • A component-modelled marvel that’s true to its era with actual use cases and tricks correctly replicated in the software to take you to funkytown.
  • An entire system that includes a model of the original instrument, an FX version, an Amp Room module, and seven Modular modules.

Imagine traveling in time to the early '70s, an era where new and experimental sounds were shaping pop music and taking it a step further. Softube’s Model 72 Synthesizer System is your vintage synth time machine. It’s component modelled down to the smallest details from a 1972 hardware unit in pristine condition with all the quirks and non-linearities intact, hence the name Model 72.

The result is incredibly authentic sound, with all the warmth and smoothness heard in countless records. Now imagine this classic has traveled into the future to pick up some contemporary features, like doubling and stereo spread, and evolve into a full system with multiple versions for different applications. Wish you were here? Take the Autobahn.

Designed by Experts, Built on Legacy

Softube has a long history of modelling professional gear. After nearly two decades working in collaboration with premium pro audio brands like Tube-Tech, Solid State Logic, Chandler Limited®, Weiss Engineering, and Trident, Softube have a solid track record recreating indisputable classics in software form that sound precisely like their hardware counterparts. This includes expertise in synthesizer plug-ins like Modular, Statement Lead, and Monoment Bass.

Sound Quality: Softube's First Priority

The Model 72 Synthesizer System's plug-ins and modules are in a class of their own compared with similar software when it comes to sound quality.

Just Like the Original Hardware

Model 72 was created with the same meticulous and accurate component modelling process you’ve come to expect from Softube’s mixing and mastering plug-ins.

Vintage Sound in Different Applications

It has the perfect vintage mojo and includes four versions that can be used in many different applications – as an instrument, as effects, in Modular, and in Amp Room.

A Revolutionary Monophonic Synth

Model 72 is based on a fully modelled vintage monophonic synthesizer that has been a true legend in music instrument history since its introduction in 1970. Affordable, easy to use, and small enough to carry around to studios and gigs, it was the first synthesizer designed for and accessible to musicians and became the archetype for all synthesizers that followed. The sounds it produces can be warm, lush, and luxurious or fat, distorted, and gnarly but not at all ear-piercing.

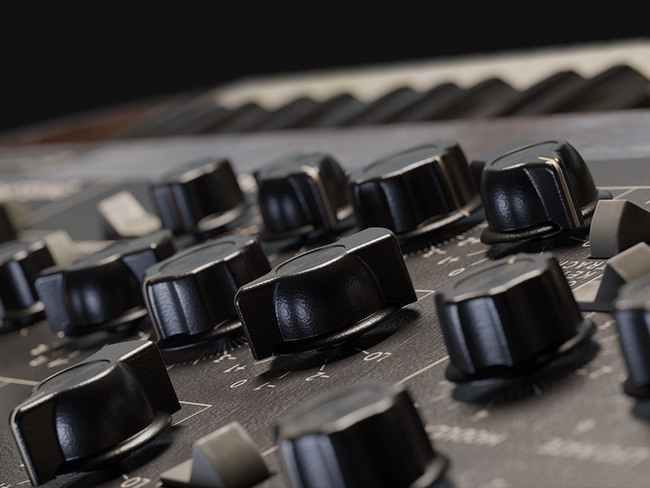

Modelled from a Pristine Hardware Unit From 1972

The software components of Model 72 were measured and matched down to the smallest details from the original hardware, keeping all of its quirks and non-linearities intact. For example, one trick that's commonly used on the hardware version is connecting a cable from the high-gain output to the external input of the unit to create a roaring, raw, and exciting feedback tone heard on countless records. Obviously, Softube had to add this feature to the Model 72 Instrument plug-in.

A Classic Synth with Modern Features

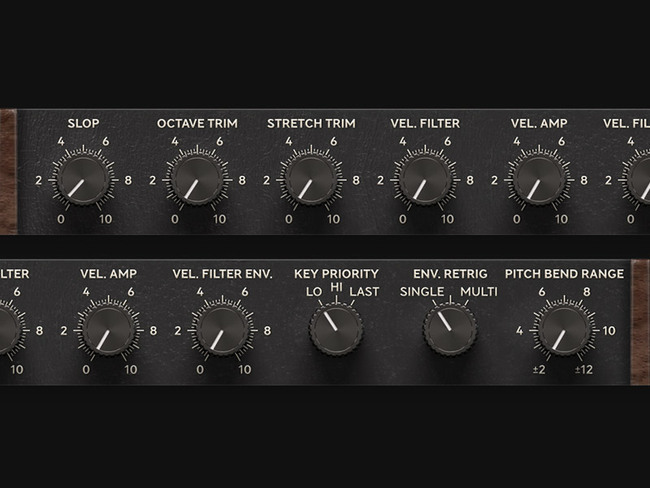

Softube updated this legendary synth with some new features, too. An expansion panel lets you tweak some of the finer details of the oscillator behavior as well as some performance aspects of the synth. The doubling feature adds the effect of having the notes that are played doubled by another Model 72, and the spread feature sets how much this doubling will spread out in the stereo field. These improvements allow you to do even more than you could with the original hardware.

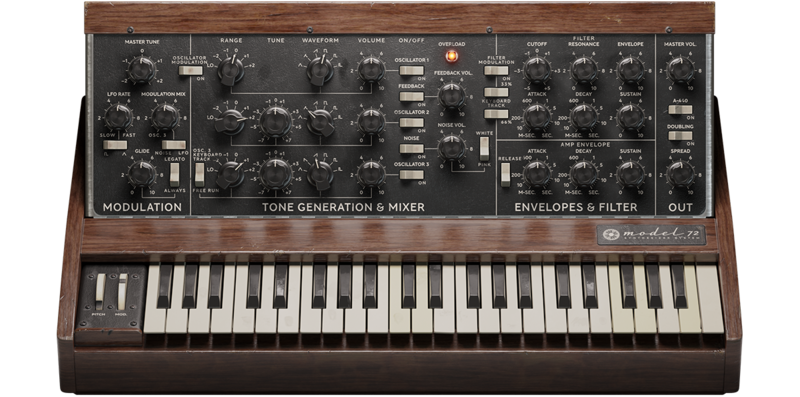

The User Interface

Tone Generation & Mixer

The tone generator is the heart of Model 72. This section consists of 3 oscillators, with the top two identical in terms of output waveforms and features and linked to the incoming note information. The third oscillator can be unlinked from the incoming note information and used as a free-running modulation oscillator with extended tuning range on the tune knob, and also features slightly different waveforms. The mixer section consists of 5 switches for turning on and off the different sound sources that mix into the filter and amp sections.

Envelopes & Filter

The combined signals from the mixer enter a voltage-controlled 4 pole low-pass filter with resonance control (feedback). The filter cutoff frequency can be controlled via the cutoff knob, but is also dynamically modified in real time by the dedicated envelope generators in this section and also the separate modulation section. The top envelope generator, with attack, decay, and sustain knobs, shapes the harmonic content of the sound and bottom the bottom one shapes the amplitude. Both envelope generators are started when you play a note and will go through their individual phases in the time set by the knobs.

The Modulation Section

The modulation section includes the master tune knob that sets the overall fine tuning of the Model 72, the note glide rate, and the modulation mix. You have the classic options of using either the oscillator 3 output or the noise, and Softube have also added a dedicated Low Frequency Oscillator (LFO) that can be used as an optional modulation source. All modulation is routed through the modulation wheel that works as an attenuator to determine the amount of modulation distributed to the destination. Modulation in can be routed to oscillator pitch, filter cutoff frequency, or both.

The Output Section

The output section includes the master volume knob that controls overall output volume. Just below master volume knob is the A440 button, which is the tuning guide tone on and off. It turns on a 440 Hz (A4) sine oscillator for quick tuning. Below the A440 button, you find the doubling feature and the spread knob. Enabling doubling adds the effect of having the notes played doubled by another Model 72, and the spread knob sets the how much this doubling will spread out in the stereo field.

Model 72 Instrument

Use the instrument plug-in on instrument channels controlled via MIDI to create the original sounds this synth is known for. This includes the feedback loop trick, the famous trick of running a cable from the high output to the external input for more overdriven, distorted, and cool sounds. You can use a connected MIDI keyboard controller, or you can edit notes in your DAW to play it. Model 72 will respond to the full range of your keyboard and can also be configured to respond to velocity.

Model 72 FX

Using the synth as an effect by running an external sound source to the external audio input is a common use case heard on countless albums from the 1970s to today. Add the FX plug-in to your audio or mix track to replicate this external input feature and use the distortions and filter on your sound source. Route a MIDI channel to your effect and play a note in order to gate the sound processed through the effect.

Amp Room Ready

The Model 72 Amp Room module consists of the fat sounding filter from this legendary synthesizer complete with envelope follower, cutoff, resonance, and drive. There are two different envelope follower modes, fast and smooth. There's also a mix knob for blending the effect to fine-tune the sound. Create truly unique sounds for guitar, bass, and keyboards with a vintage vibe with this incredible envelope filter effect.

Modular Ready

All the Model 72 Instrument sections are available as individual modules for Softube Modular, ready to be added to your Eurorack system. It’s easy to combine single parts of the synthesizer in a modular workflow to build patches and get authentic vintage monophonic sounds.

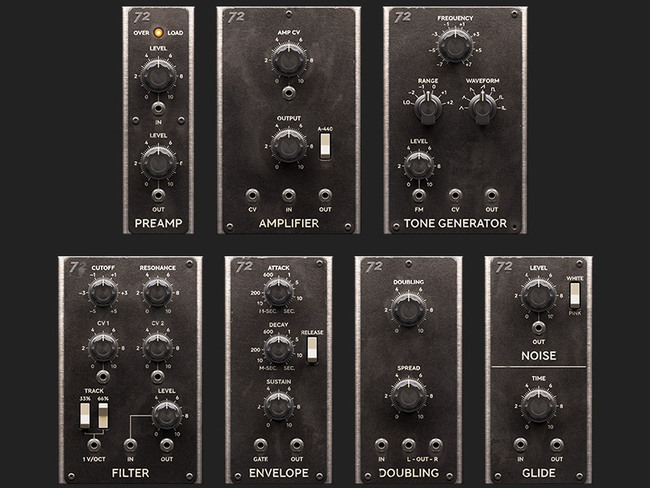

The Modular Modules

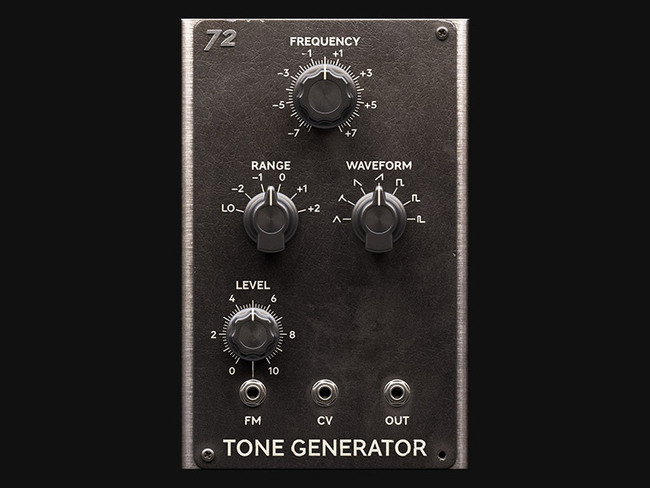

Tone Generator

Includes all seven waveforms used in the plug-in. Use a mixer or gain module to get these oscillators to perform well with the other modules in Modular with correct gain-staging.

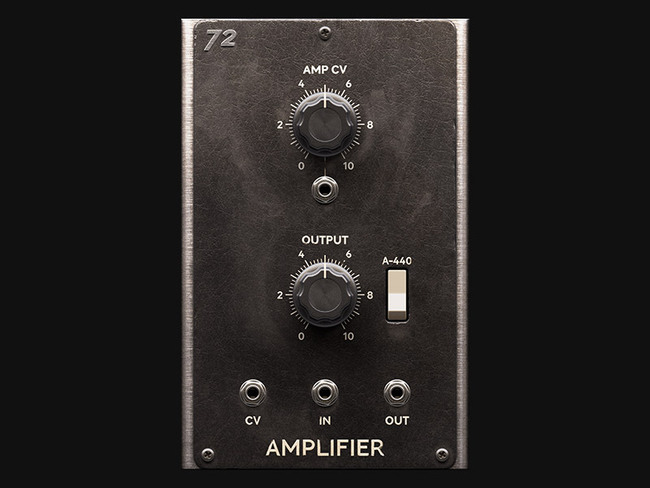

Amplifier

Amplifies and also distorts audio. The top CV jack is pre-patched to 7.5V and this voltage is scaled through the amp CV attenuator potentiometer. Additional CV need to be inserted for the amp to amplify/pass audio.

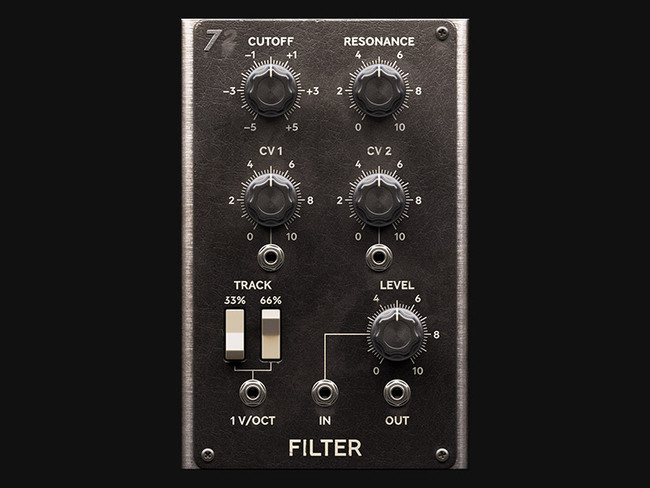

Filter

This classic fat lowpass filter self-oscillates when it goes past 8 and can track 1 V/octave fairly well when the 33% and 66% switches are both engaged. The level knob is dampening for the input.

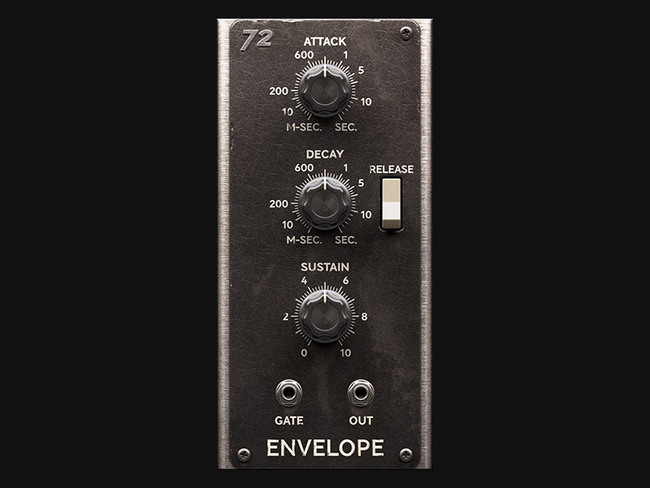

Envelope

A gate above 0.66V in the gate jack activates the envelope. The decay knob also sets the release time when release switch is set to on. Release time is set to zero when the release switch is turned off.

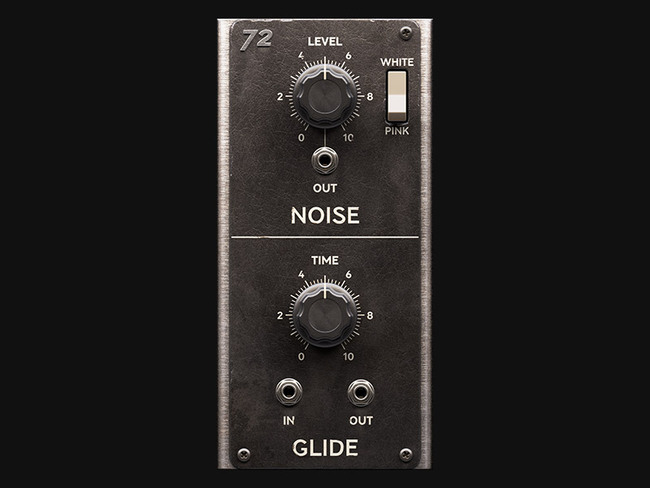

Noise and Glide

A white/pink noise generator and a glide buffer. The white/pink noise output is based on performance of the original circuitry. The glide buffer is mainly designed for slewing control voltages but can be used to slew anything.

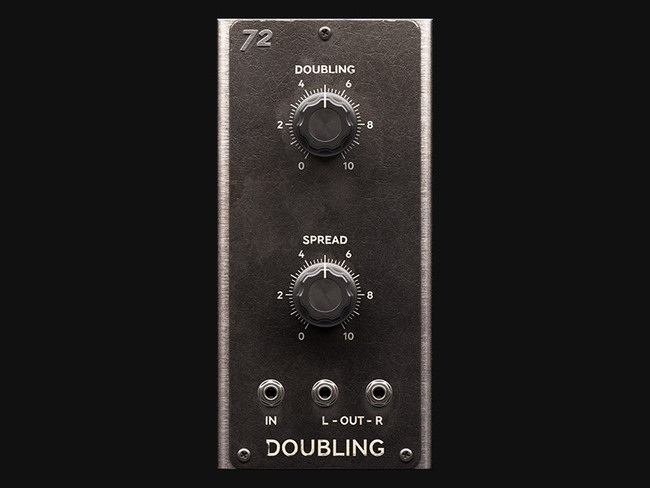

Doubling

Essentially the same effect as the Model 72 plug-in, but here it can be set gradually with the doubling knob and then the spread knob will expand the effect in stereo.

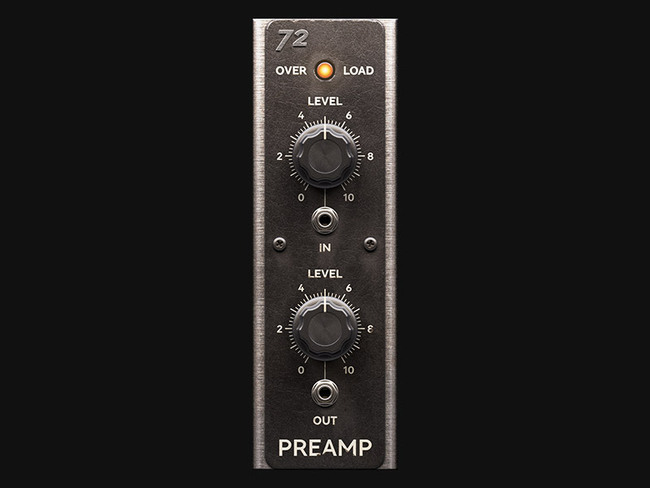

Preamp

The preamp for external audio gives a very nice distortion when pushed.

Features

  • An entire system based on a classic analogue monophonic synth from the early 1970s with the emphasis on sound quality.
  • Era correct: component-modelled to perfection, with all the quirks and non-linearities intact – it sounds and behaves just like its original hardware counterpart.
  • Actual use cases and tricks of the hardware correctly replicated in the software.
  • Four versions included: Model 72 Instrument, Model 72 FX, Model 72 module for Softube Amp Room, and seven Model 72 modules for Softube Modular. Learn more about Softube Amp Room and Softube Modular.
  • Create combinations in Modular never possible before in real life or in the world of software.
  • Software-exclusive features added: doubler, stereo spread effect, and expanded controls.

System Requirements

  • Mac OS X 10.12 or newer (older OS versions may work but are not tested (64-bit only).
  • Windows 64-bit, versions 7, 8 or 10 (64-bit only).
  • Intel Core 2 Duo, AMD Athlon 64 X2 or newer.
  • Screen resolution 1280x800 or larger.
  • Supported sample rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz, in both mono and stereo.
  • 8 GB RAM or more is recommended, as well as at least 8 GB hard disk space for installation (individual plug-ins take less space, while sample libraries may require additional disk space).
  • A Softube account is required to register and install the software.
  • An iLok account is required for authorisation of the software.
  • Internet access for downloading installer and managing licenses.
  • iLok generation 2 and up, if you intend to use a physical iLok dongle for authorizing your plug-ins (note that an iLok dongle is not a requirement).
  • In theory, any 64-bit VST, VST3, AU, or AAX (11.0.2 or higher) compatible host application should work.
  • The most recent maintenance release of the DAW application is recommended.

However, due to plug-in host differences between DAWs - and Softube's own rigorous testing standards - Softube only officially test their plug-ins and instruments in the most recent versions of Pro Tools, Logic Pro, Cubase, Live, Studio One, Digital Performer, Reaper and Sonar. Softube plugins are not tested in the non-listed systems, but they most likely work as long as the system requirements are met. Softube cannot guarantee a solution for issues in unsupported systems.

Important note: make sure that you always use the latest iLok License Manager. It is not included in the Softube installer but can be downloaded from www.ilok.com​
